Liyi Ipx4 Test Equipment, Water Resistance Test Machine, Rain Test Chamber Water Spray Resistance Test Equipment

1
MOQ
Liyi Ipx4 Test Equipment, Water Resistance Test Machine, Rain Test Chamber Water Spray Resistance Test Equipment
امکانات گالری توضیحات محصول درخواست نقل قول
امکانات
مشخصات
ابعاد داخلی: 900*900*900 D*W*H
ابعاد کلی: 1120*1460*1660 D*W*H
شعاع لوله نوسانی: 400 میلی متر
قطر سوراخ اسپری: φ0.4 میلی متر
فاصله سوراخ ها: 50 میلی متر
محدوده لوله نوسان: ±45 درجه، ± 60 درجه، 90 ± درجه، 180 ± درجه
سرعت چرخش گردان: 1r/min
نوع کنترل کننده: صفحه نمایش لمسی رنگی قابل برنامه ریزی
کنترل فشار آب: جریان سنج
ماده داخلی: فولاد ضد زنگ SUS304
متریال بیرونی: ورق فولادی با پوشش محافظ
منبع تغذیه: 380 ولت ، 50 هرتز
اندازه لوله کش رفتن: R400mm/500mm/600mm
اندازه قفسه نمونه: D700mm
اندازه تخته چکه ای: 1000*1000mm
برجسته کردن:

IPX4 water resistance test equipment,rain test chamber for spray resistance,waterproof test machine with warranty

,

rain test chamber for spray resistance

,

waterproof test machine with warranty
اطلاعات اولیه
محل منبع: گوانگدونگ، چین
نام تجاری: Liyi
شماره مدل: لییی
پرداخت
توضیحات محصول
Liyi IPX4 Test Equipment, Water Resistance Test Machine, Rain Test Chamber
The Liyi IPX4 Test Equipment is a professional water resistance testing machine designed for evaluating product durability against water spray. This rain test chamber complies with multiple international standards including IEC60529, IEC 60598, GB2423.37-89, and ISO 20653. It is particularly suitable for testing LED luminaires and other products requiring IP5X and IP6X certification.
Technical Specifications
Product Name Liyi Rain Test Chamber
Internal Dimensions (mm) 900*900*900 D*W*H (customizable)
Overall Dimensions (mm) 1120*1460*1660 D*W*H (customizable)
Oscillating Tube Radius 400mm
Spraying Hole Diameter φ0.4mm
Hole Spacing 50 mm
Oscillating Tube Range ±45°, ±60°, ±90°, ±180° (theoretical value)
Turntable Rotation Speed 1r/min, or stepless speed regulating (optional)
Controller Programmable color display touch screen controller, PC Link with software, R-232 interface
Water Pressure Control Flow meter
Observation Window Large viewing window with wiper
Water Supply System Storage water tank, booster pump, automatic water supply, water purification system, water saving
Safety Protection Electric leakage, short circuit, motor overheating, over-current protection
Interior Material SUS304 Stainless steel
Exterior Material Steel plate with protective coating
Power Supply 380V, 50HZ
Compliance Standards ISO 20653, IEC 60529
Product Images

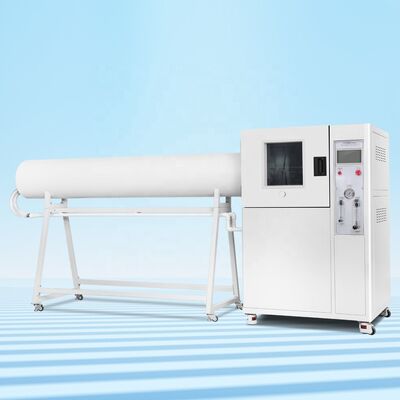

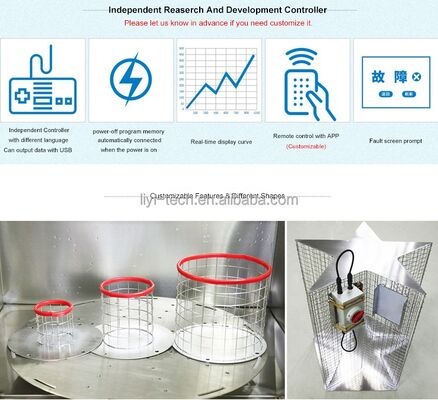

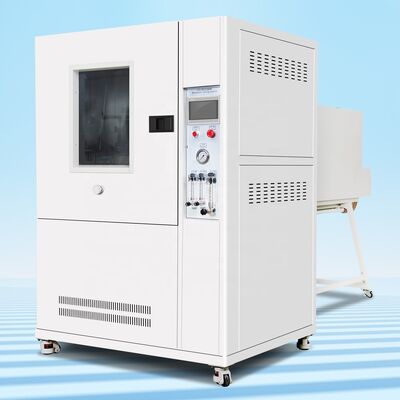

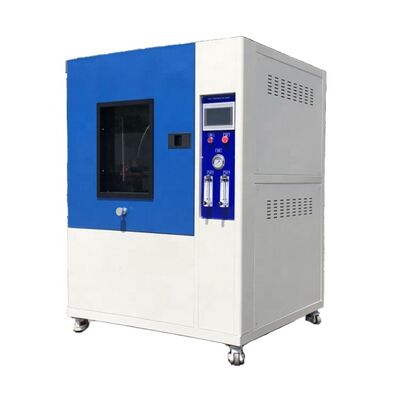

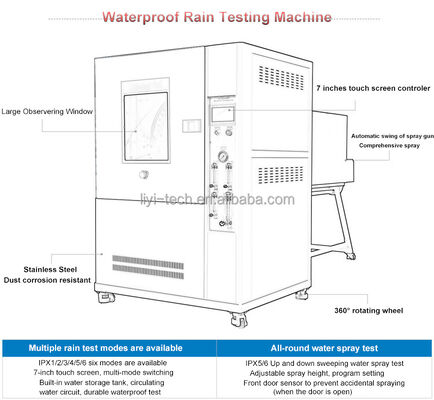

Liyi Ipx4 Test Equipment, Water Resistance Test Machine, Rain Test Chamber Water Spray Resistance Test Equipment 0 Liyi Ipx4 Test Equipment, Water Resistance Test Machine, Rain Test Chamber Water Spray Resistance Test Equipment 1 Liyi Ipx4 Test Equipment, Water Resistance Test Machine, Rain Test Chamber Water Spray Resistance Test Equipment 2 Liyi Ipx4 Test Equipment, Water Resistance Test Machine, Rain Test Chamber Water Spray Resistance Test Equipment 3
Company Profile

Dongguan Liyi Environmental Technology Co., Ltd is a high-technology production-oriented enterprise specializing in developing, manufacturing, and marketing various environmental testing equipment. With advanced technology, experienced personnel, and a comprehensive quality management system, we serve customers in over 150 countries.

Our product range includes simulated environmental testers, plastic and rubber testers, and other material testing equipment. Based in Dongguan, Guangdong province (China's manufacturing center), we also maintain an office in Kunshan, Jiangsu province to better serve Eastern China customers.

We are committed to innovation and international standards compliance, helping customers establish quality testing labs worldwide.

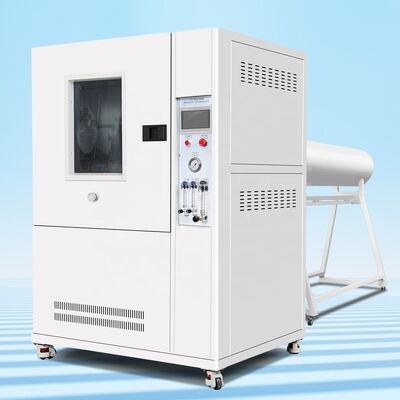

Liyi Ipx4 Test Equipment, Water Resistance Test Machine, Rain Test Chamber Water Spray Resistance Test Equipment 4
Frequently Asked Questions
1. Are you a manufacturer? Do you offer after-sales service? What is the warranty policy?
Yes, we are a professional manufacturer of environmental test chambers and other testing equipment. All machines come with a 12-month warranty after shipment, extendable to 14 months for overseas customers. We provide free maintenance during this period and offer technical support via email or video chat, with solutions typically provided within 24-48 hours of problem confirmation.
2. What is the delivery time?
Standard machines are typically available from stock. For non-stock items, delivery takes 15-20 working days after deposit receipt. We can accommodate urgent requests with special arrangements.
3. Do you accept customization requests? Can I have my logo on the machine?
Yes, we offer both standard and customized machines according to customer requirements. OEM and ODM services are available, including logo placement on equipment.
4. How can I install and use the machine?
Most machines are shipped fully assembled - just connect the power cable to begin operation. We provide English operation videos via email and can assist with on-site installation when necessary.
Liyi Ipx4 Test Equipment, Water Resistance Test Machine, Rain Test Chamber Water Spray Resistance Test Equipment 5
